QUANTM ELECTRIC DOUBLE DIAPHRAGM PUMP

Designed to meet the growing demand for clean energy and sustainable technologies, QUANTM is the world’s first (and only) affordable electric-operated double diaphragm (EODD) pump built to minimize energy consumption by cutting energy usage and costs by up to 80%. Innovative, new FluxCore motors and drives provide up to 8x more continuous torque at low speeds while minimizing size and resistance losses. These revolutionary pumps are easy to clean, simple to maintain, and require less energy to operate—providing a lower cost of ownership. Graco’s seal-less and self-priming diaphragm pump design delivers clear advantages over all other pumps, including centrifugal, lobe, gear, progressive cavity, peristatic and piston/plunger technologies.

QUANTM isn’t just another electric pump: it’s a game-changer.

QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump.

The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons.

• Revolutionary Design
  • Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
  • Patented FluxCore drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
  • Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
  • Quiet operation reduces plant noise and improves employee safety and health
  • Smart pump control provides more accurate flow set points and built-in I/O
• FluxCore Motor
  • Powder-coated aluminum FluxCore drive
  • 240 VAC 1Φ motor with 15 ft cord and IEC 60320-C14 plug
  • Non-hazardous
• Materials of Construction
  • Aluminum fluid section with NPT end port
  • Internal components include Geolast® seat, Polychloroprene ball, Polychloroprene overmold diaphragm and PTFE manifold o-ring

A MASSIVE LEAP FORWARD IN EODD PUMP TECHNOLOGY

• Quieter operation and smaller footprint enable easier installation and service—the design can pay for itself in energy savings in under a year
• Efficient, affordable drop-in replacement to reduce energy costs up to 80% being competitively priced vs. AODD pump technologies
• Only electric diaphragm pump that stalls under pressure, eliminating the need for pressure sensors and additional controls to prevent pump failures and reduce downtime
• Integrated I/O allows for remote operation and speed control to minimize operator oversight
• Smart control technology adjusts pump speed to aid in priming or prevent dry running cavitation that damages pumps
• Plug-and-play installation for fast, easy and affordable transfer operations upgrades
• Delivers clear advantages over other pumps, including centrifugal, lobe, gear, progressive, peristaltic and piston/ plunger technologies

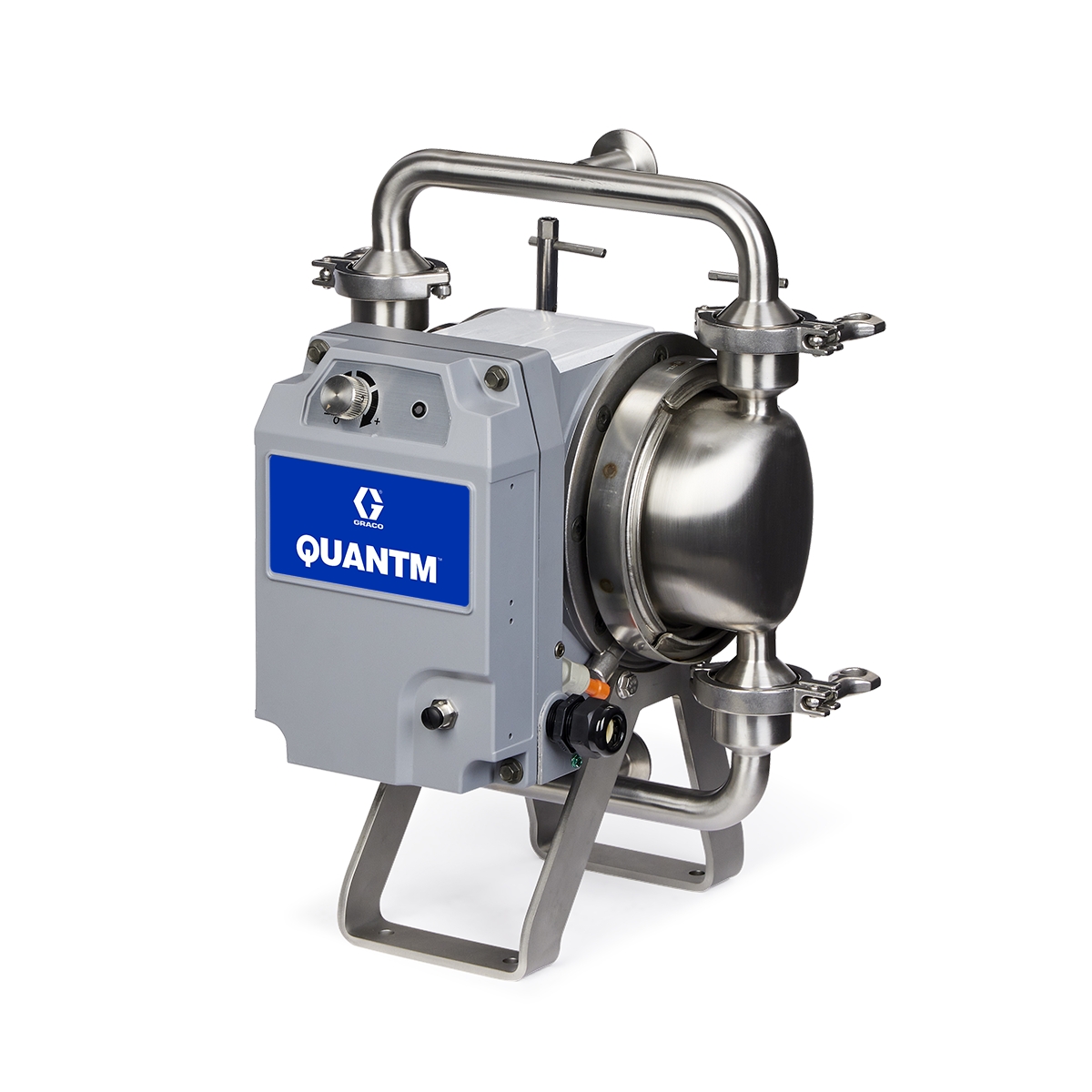

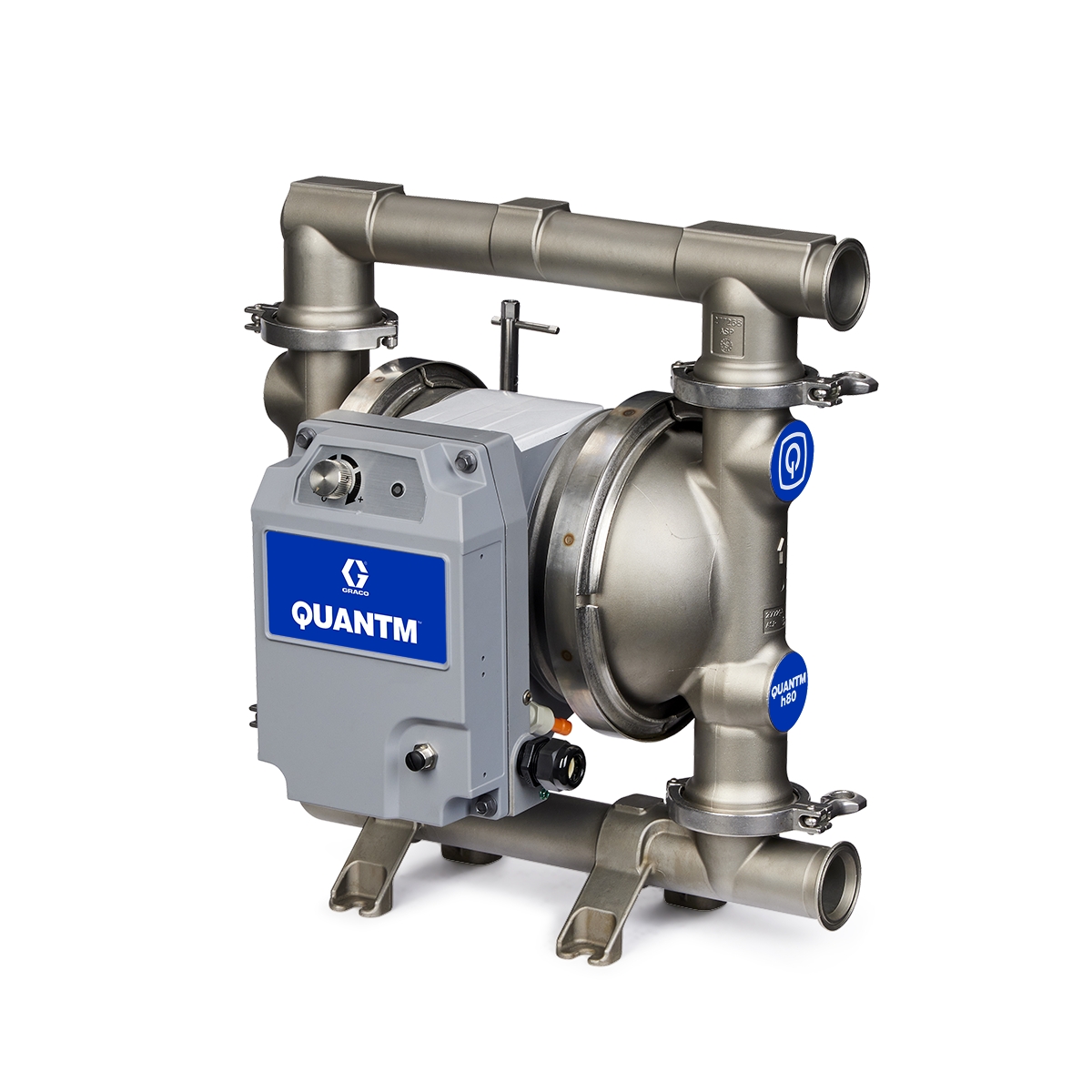

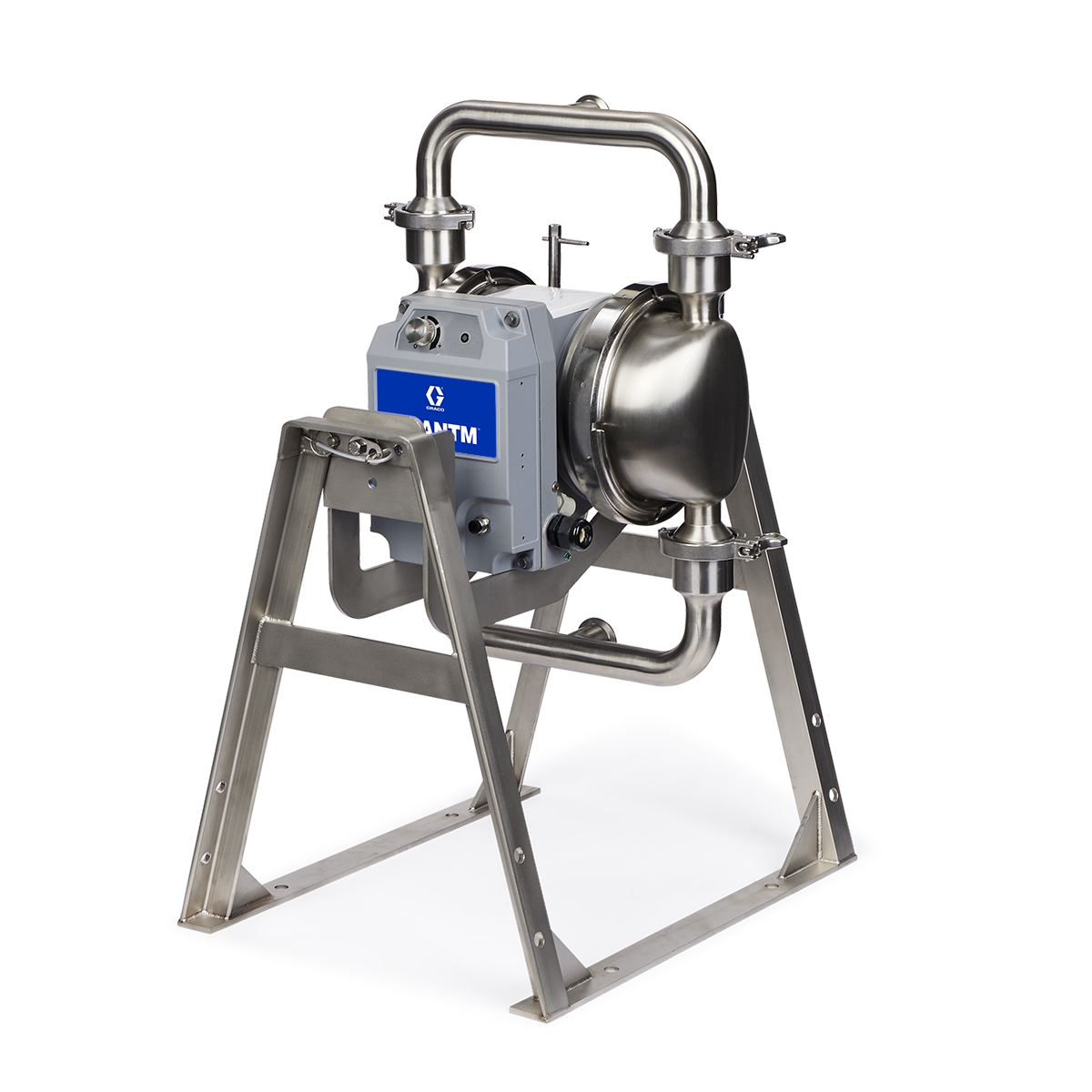

QUANTM HYGIENIC ELECTRIC DOUBLE DIAPHRAGM PUMPS

Designed to meet the growing demand for clean energy and sustainable technologies, QUANTM is the world’s first (and only) affordable, hygienic electric operated double diaphragm (EODD) pump built to minimize energy consumption and related costs by up to 80%. Innovative, new FluxCore electric motors and drives provide up to 8x more continuous torque at low speeds while minimizing size and resistance losses. These revolutionary pumps are easy to clean, simple to maintain, and require less energy to operate—providing a lower cost of ownership. Graco’s seal-less and self-priming diaphragm pump design delivers clear advantages over all other pumps, including centrifugal, lobe, gear, progressive, peristatic and piston/plunger technologies by handling difficult applications.
