QUANTM Food Grade Pumps

Graco’s revolutionary new QUANTM food-grade electric operated double diaphragm (EODD) pumps are the ideal solution for FDA-approved manufacturing facilities focused on meeting sustainability goals by reducing their largest variable cost: energy. A QUANTM food-grade pump could pay for itself in 12 months or less while helping achieve compliance with increasingly tight regulations and earning significant rebates along the way.

QUANTM sanitary food-grade EODD pumps are designed to transfer a broad range of food and personal care products, including fruit juices, sauces, food-grade oils, jams, personal care and pharmaceuticals. QUANTM pumps are the perfect solution for upgrading your less-efficient air operated pumps. The same great self-priming, stalling, seal-less design with smooth steady flow is a must-have for in-process applications, filling systems and sanitary/hygienic applicator applications. The powerful new FluxCore motors and drives deliver up to 8x more continuous torque at low speeds than conventional motors and the plug-and-play installation for both 120V and 240V options at the same footprint as an AODD pump allows you to easily replace existing pumps without additional investment or infrastructure rework.

  • Up to 80% more efficient than AODD, 50% more efficient compared to competitive electric technologies—displacing fossil fuel, hydraulics and air power
  • Wide operating range and material compatibility–handles abrasives, solids and shear-sensitive materials
  • Integrated control of pump with the turn of a dial–operates like the AODD you are used to and wash-down rated
  • External control, standard I/O for remote or PLC pump control
  • Modular fluid components—seats, check balls, diaphragms and fluid sections interchange with AODD components so you can create a pump configuration that matches your fluid handling needs
  • Seal-less design removes common issues associated with rotary shaft seals and handles abrasive material
  • Overmolded diaphragm plates
    • Designed with PTFE on the fluid side and EPDM on the air side
    • Does not contain crevices that can harbor bacteria
  • The only electric diaphragm pump on the market that stalls under pressure, eliminating the need for pressure sensors and additional controllers and reducing downtime by preventing pump failures caused by clogged lines or closed valves

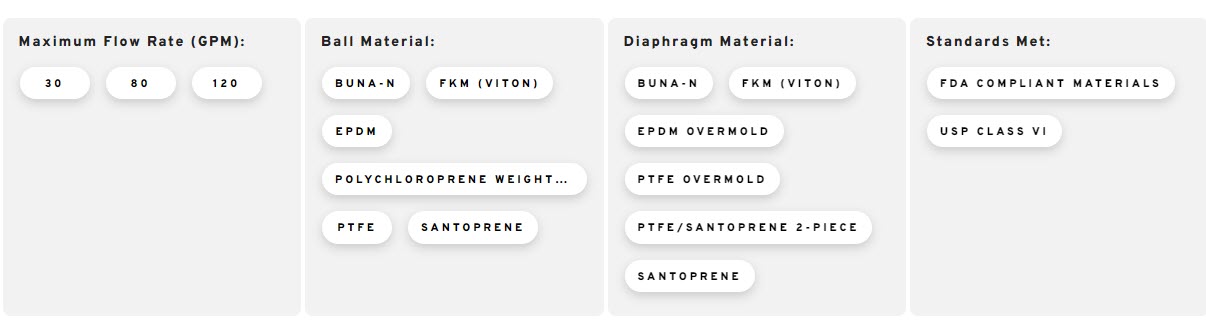

There are over 200 combinations of models in the Quantm Food Grade range, so please contact us for the best option to suit your requirements.
