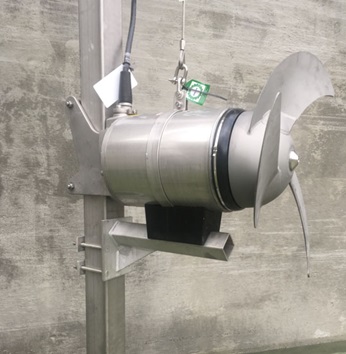

Sulzer XRW Mixers
Main industries and applications
No matter the application or the size of your facility, you need a reliable, cost-effective submersible mixer that is made to work hard, day in and day out — even in the harshest conditions. Submersible mixers type ABS XRW are robust and reliable, with an average operating life of more than a decade. They are designed to handle mixing and stirring applications in sewage treatment plants, agriculture, paper and pulp mills, and other heavy industries, including in abrasive or acidic liquids.
The XRW series can:
• Equalize sewage
• Aid biological processes (aerobic, anoxic and anaerobic) • Be used in the selector (contact zone)
•Be used in the sludge buffer tank
They can also homogenize highly-concentrated sludge and slurries, including:
• Primary, secondary and digested sludge in storage and buffer tanks
• Lime and mineral slurries And are certified for use in hazardous locations:
• Certified for ATEX (Ex II 2G Ex h db IIB T4 Gb)
• FM and CSA certification is available
Submersible mixers for large tanks and open waters
The XRW 210 to 900 mixers are a compact, highly efficient mixer range. The multi-blade propellers with two or three blades are designed to achieve high thrust and therefore a high flow capacity. This optimal flow pattern ensures that our XRW mixers handle a wide range of mixing and stirring applications. For an optimized lifecycle cost, each mixer type is equipped with the most suitable motor speed concept; asynchronous or asynchronous with a gearbox.

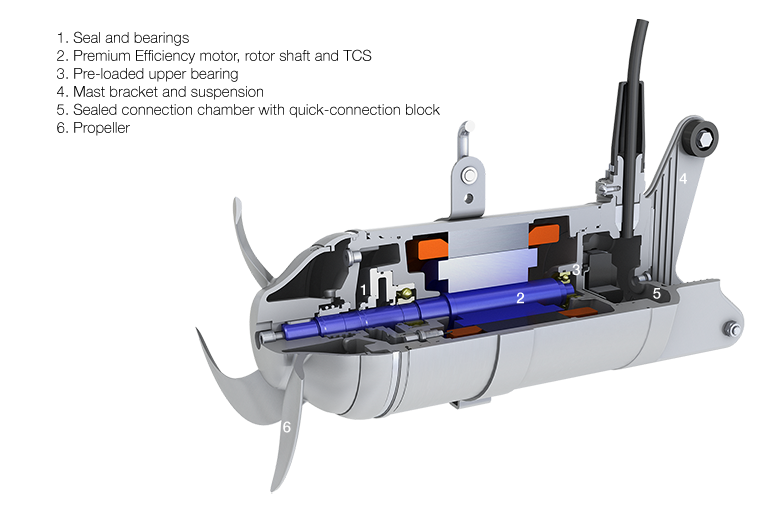

Features and benefits
Premium Efficiency motors
• Guarantee the lowest possible energy consumption
• Reduce the operating temperature, extending the product life
Easy upgrade
• Suitable for use with most guiderails and lifts
• Available with a wide range of brackets and adapters
Maintenance-free bearings
• Lubricated for life
• Operating lifetime that exceeds 100’000 hours
Preloaded inner bearings
• Prevent spinning even in massive rag loaded applications with high turbulence
• Eliminate backlash by design, the attached spring always ensures a smooth operation
• Extend bearing life
Large rotor shafts
• Minimize deflection due to “increased” shaft diameter and stronger bearing set up
Sealed connection chambers
• Simplify maintenance by reducing the number of nuts, washers, ferrules etc.
• Safeguard the motor
• Ensure reliability because of separated chambers between motor and connection chamber
Seal systems
• Include a dependable, triple-seal system
• Feature dual oil chambers, to safeguard the motor
• Offer enhanced protection to keep the mechanical seal clog-free and extend its life
Robust planetary gearbox
• Standard on the XRW 750 and XRW 900
• Fully integrated cartridge box available also in stainless steel mixer executions
Hydraulic-optimized propeller as standard
• Ensures high-efficient mixing on all XRW mixers
Investment-cast propeller
• Ensure the best possible mixing performance
• Self-clean to reduce maintenance
• Available for XRW 210 and XRW 300
Multiple moisture sensor (DI) seal monitoring
• Secures full protection for the motor and gearbox
Abrasion-resistant, galvanically-insulated mast bracket and suspension
• Reduces the risk of electrochemical corrosion
TCS (Thermo Control System)
• Provides a warning and switches off the motor, if necessary, to prevent overheating
